Electrophoretic Coating vs. Manganese Phosphating

A Comparison of Two Surface Treatment Technologies

Surface treatment plays a crucial role in enhancing the corrosion resistance, appearance, and wear performance of metal parts. Among the most widely used industrial methods are Electrophoretic Coating (E-coating) and Manganese Phosphating. While both provide protective layers for ferrous metals, their processes, properties, and applications differ significantly.

1. Process Overview

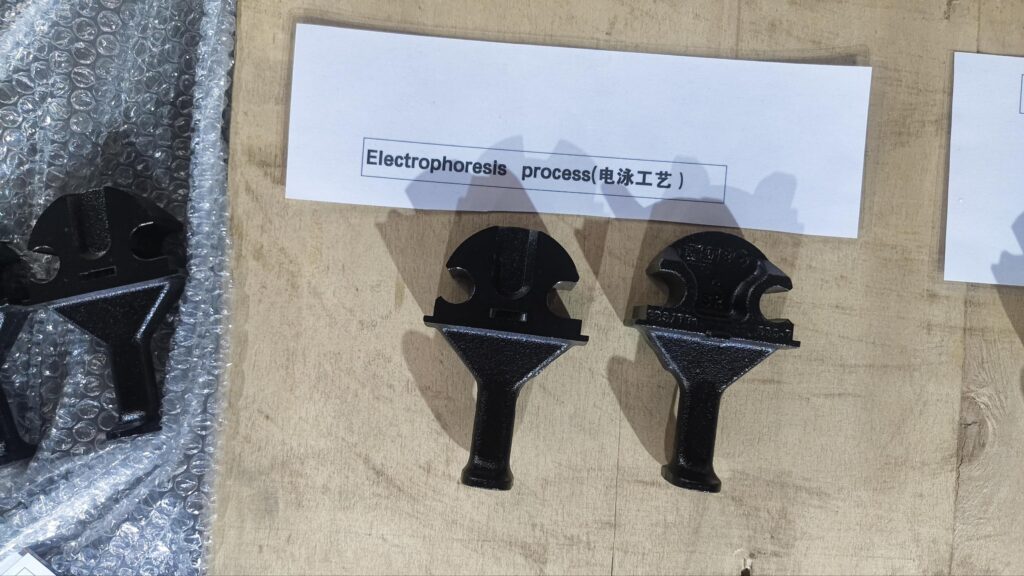

E-coating (Electrophoretic Deposition)
E-coating is an advanced painting process in which metal parts are immersed in a water-based paint bath and an electric current is applied. The charged paint particles migrate toward the metal surface, forming a uniform, tightly bonded coating layer. After deposition, the coated parts are baked to cure the film.

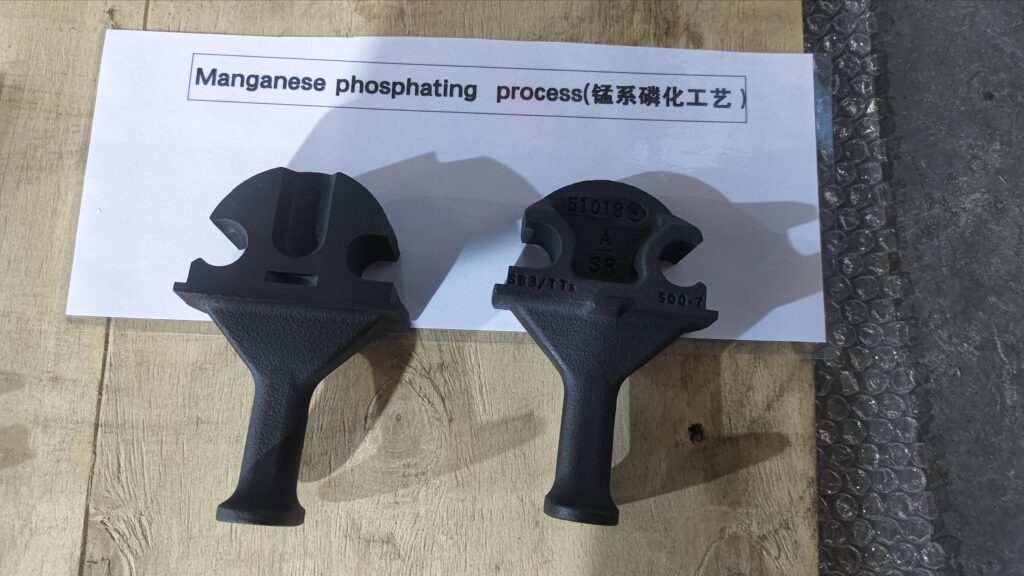

Manganese Phosphating
Manganese phosphating is a chemical conversion process that creates a crystalline phosphate layer on the metal surface. The parts are cleaned, then immersed in a manganese phosphate solution, where a controlled chemical reaction forms a dark gray, porous coating that improves oil retention and wear resistance.

2. Coating Characteristics
